Configuring iPad with Infinea Tab to Charge in Docking Station

Configuring iPad with Infinea Tab to Charge in Docking Station

To charge the iPad in the docking station while the Infinea Tab is installed, and additional application form the Apple App Store is required.  After downloading and installing the application, there are a few configuration changes necessary.

·        Download IPC Support from Apple App Store before proceeding





Configure IPC Support Software

1.      Tap IPC Support icon to open application

·        Connecting to device message displays

2.      Select Configuration icon at bottom of screen

a.      USB Charge Current:  Select 1A

b.      Pass Through Sync:  Slide to off

3.      Close IPC Support application








Configure Remotix RDP Application

·        Application must be running in the background for iPad and Infinea Tab to charge!



1.      Tap Remotix RDP application to open






2.      Select Settings







3.      Select Infinea Accessories

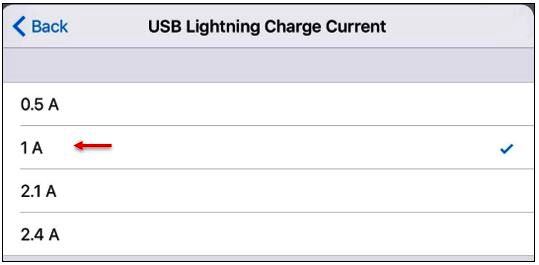

a.      Select USB Lighting Charge Current:







b.      Select 1A

c.      Select Done
